Tial Sport V60 60mm High-Flow External Wastegate

Description

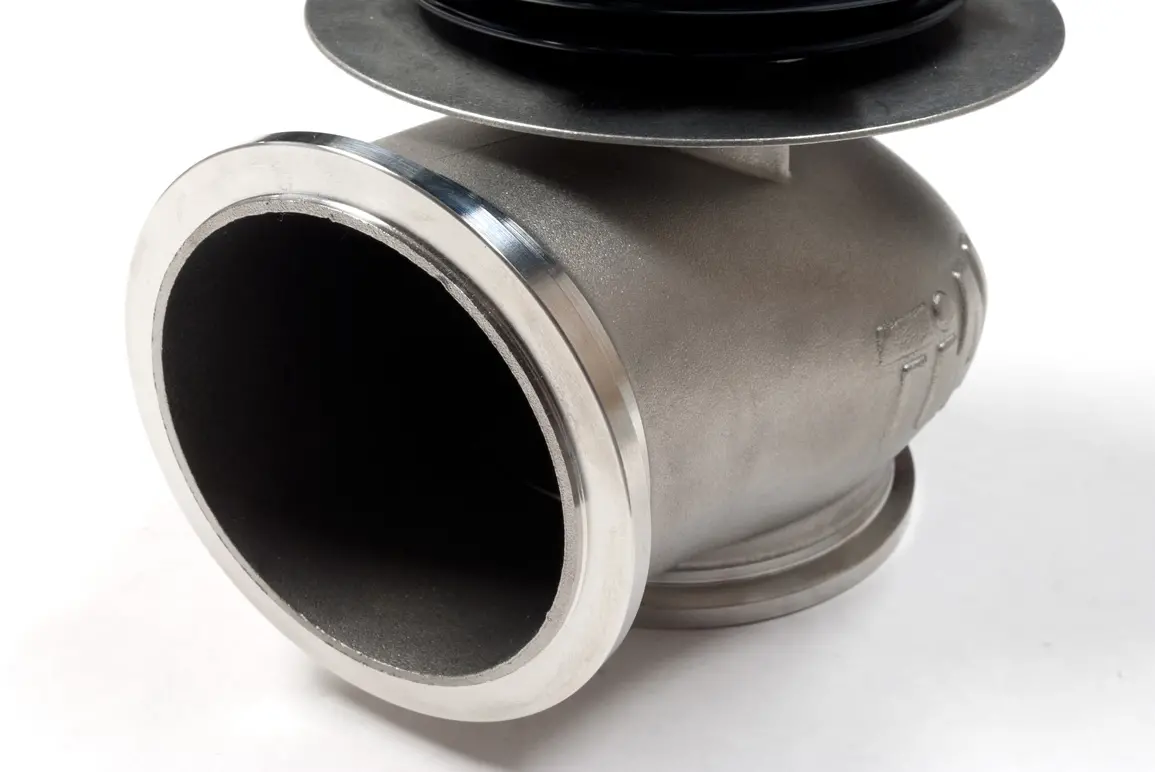

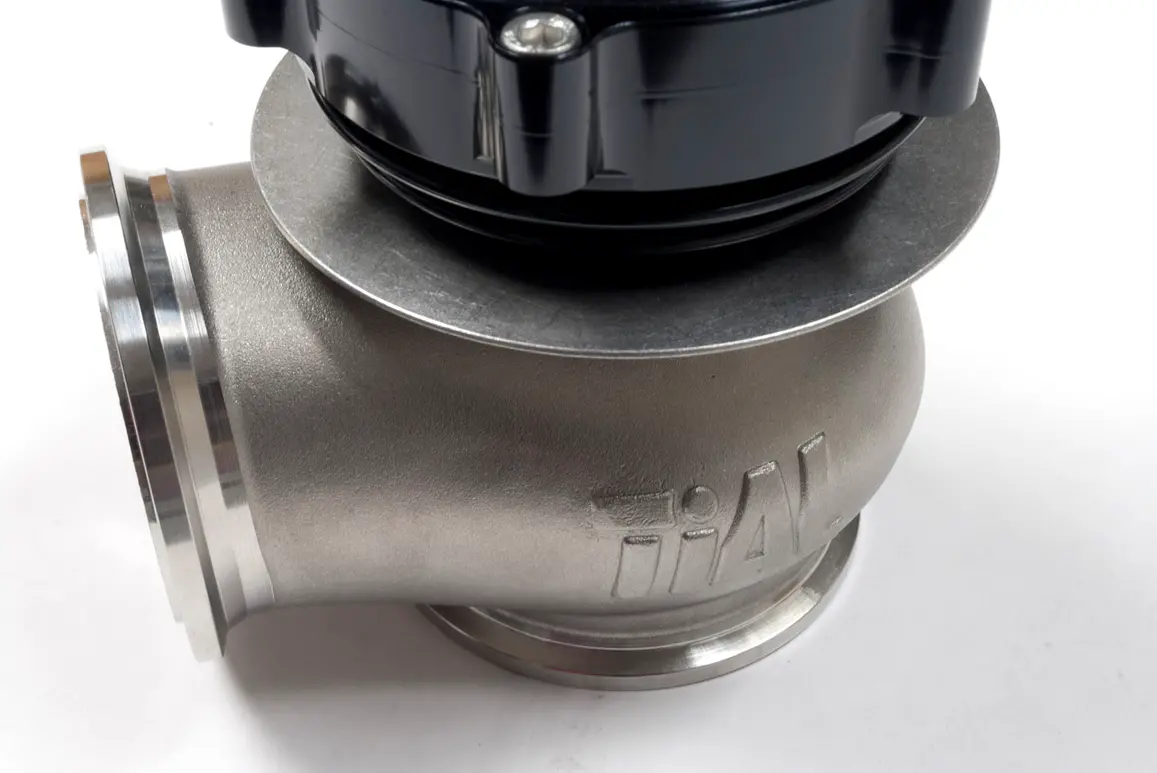

Tial Sport 60mm V60 Wastegate

The largest unit in the TiAL lineup. This massive 60mm wastegate will control boost with dead on accuracy in the most demanding situations. The V60 is a favorite in the drag racing and road racing industries, from the burnout box to the finishing line at Circuit de la Sarthe

Features:
– High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
– High temperature silicone Nomex reinforced actuator diaphragm.
– 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist “relaxing” at temperature to 900F (483C).
– Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
– All Stainless Steel hardware.
– Mating weld flanges are 304L
– Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
– Race proven at Le Mans
– Flows 330CFM @ 1psi differential pressure

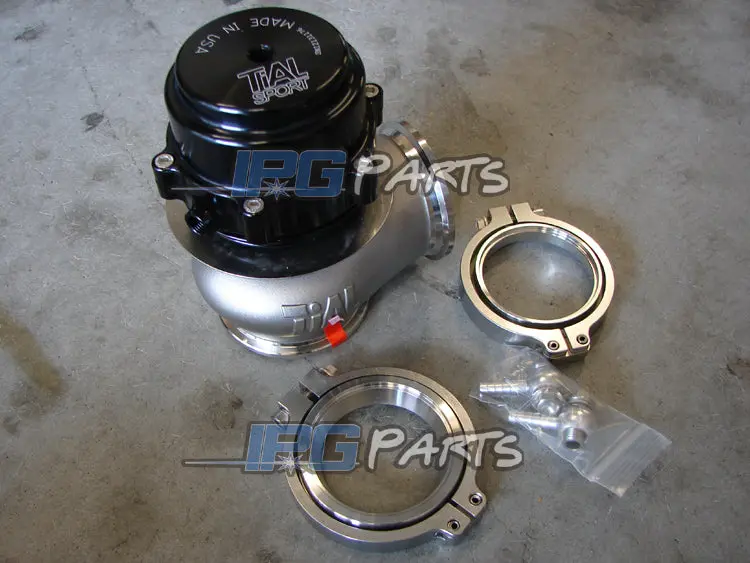

Whats in the box:
– Included with every Tial V60:
– V60 Assembly
– V60 Valve Seat
– 2 TiAL Air Fittings
– Inlet Flanges and Clamps
– Outlet Flanges and Clamps
