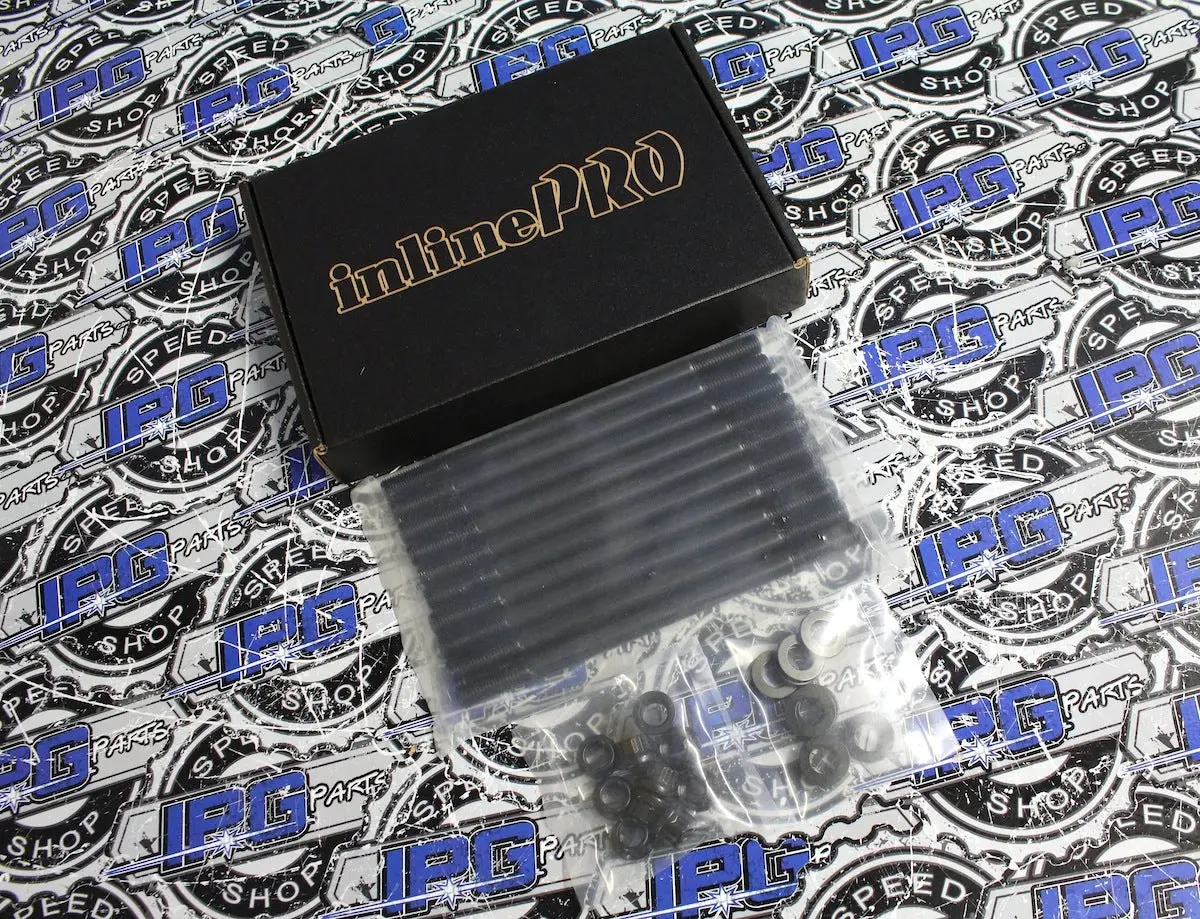

InlinePRO 8740 Chromoly Head Stud Kit for 2012–2015 Honda Civic Si (K24Z7)

Description

InlinePRO 8740 Head Studs for the 2012-2015 Honda Civic Si – K24Z7

-Feature 11mm beam diameter vs 9.5mm for stiffer clamping force

-12 point nuts & hardened washers

-Used in 1000whp applications

M11 K24Z3/7 Head Stud Installation
-Make sure the threads in the block are in good condition and clean each hole of any debris and fluids.
-Install the studs into the block using motor oil as lube for the bottom threads and torque it to 24 inch pounds (2ft/lbs).
-Install head gasket and cylinder head.
-Apply moly or arp lube to the top threads and washers then install nuts.
-Torque in the factory pattern using 3 steps of: 25ft/lbs., 50ft/lbs., and finally 80ft/lbs.
