PRODUCT DESCRIPTION

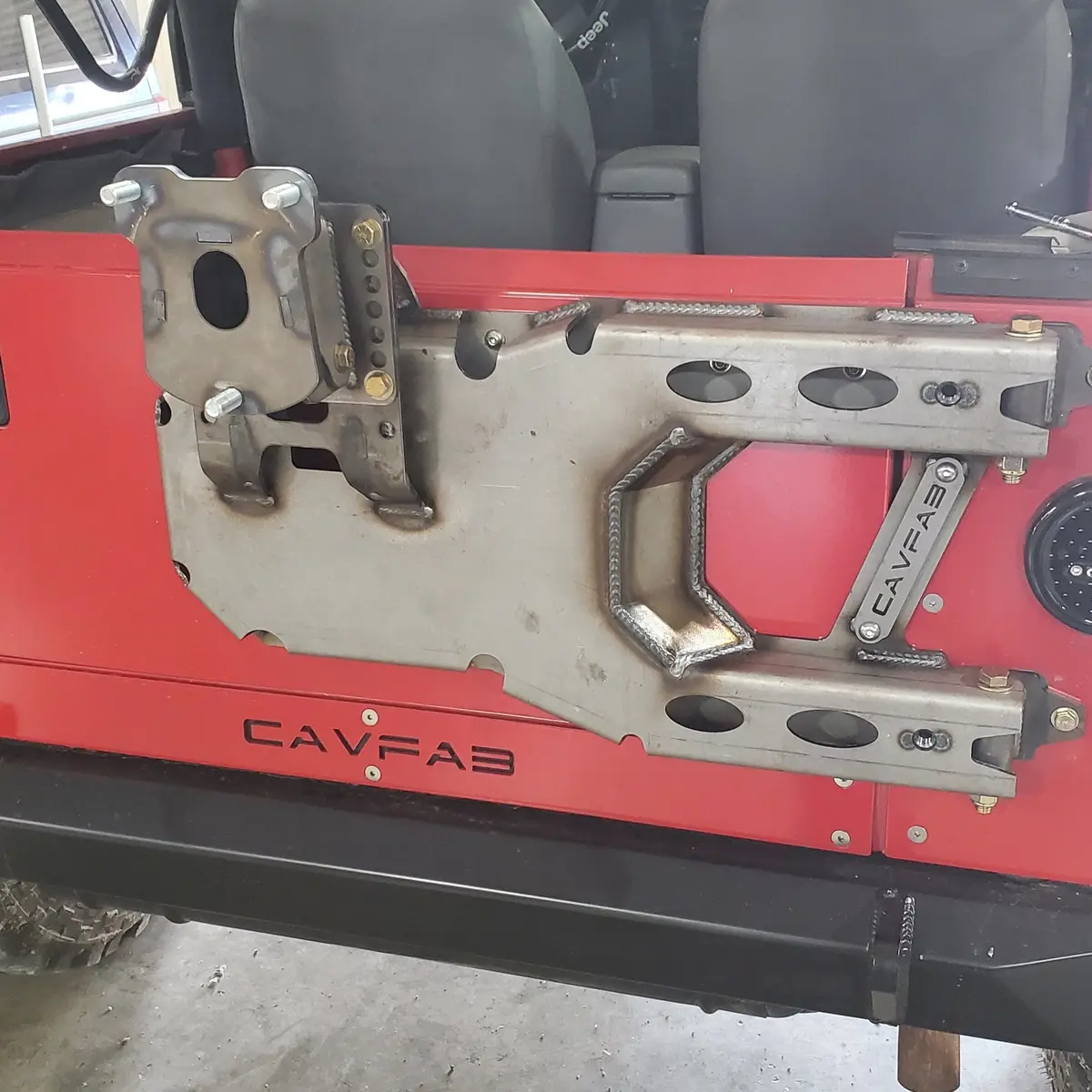

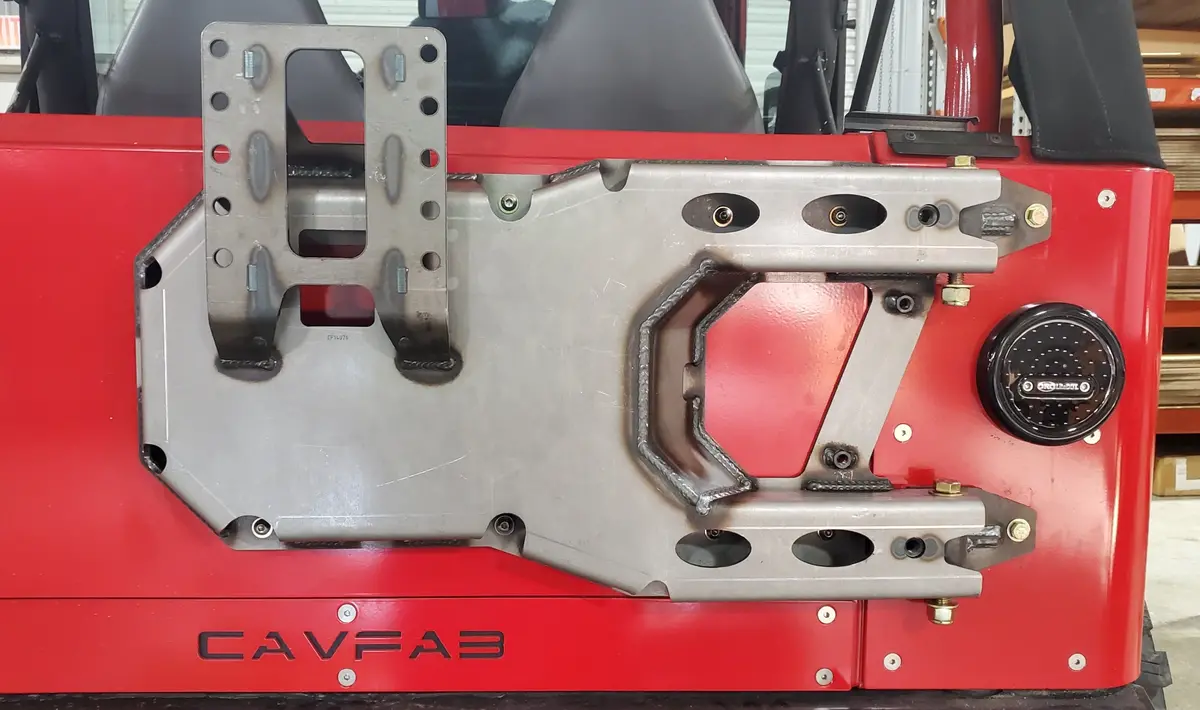

Introducing the CavFab TJ/LJ Elite Series Body-Mounted Spare Tire Carrier! Built from laser-cut 3/16″, 1/4″, and 3/8″ American steel with precision welds, this tire carrier is engineered to handle up to a 42″ tire and extreme off-road demands. Strength, durability, and performance in one rugged design.
VEHICLE FITMENT
- 1997 – 2006 Jeep Wrangler TJ / LJ
- Note: This will not fit with the factory taillight position. Modifications or aftermarket lights are required.
FEATURES
- Designed, Engineered, Tested, and Built in the USA
- CNC Laser Cut & Formed 3/16″, 1/4″, and 3/8″ American Steel
- Oilite Bronze Bushings For Lifetime Maintenance Free Use
- Adjustable Tire Mount For a Variety Of Tire Sizes
- Ability To Hold a 42″ Tire Without Rattling (About 4″ adjusting up and down)
- Additional tie in to the cage included for even more security
- With our corner armor and the included tie-in, we’re able to get a 42″ tire mounted (and can still do so with the stock Bumper)
- Optional License Plate Relocation Bracket Available
- Ships Raw Steel
- Direct Bolt On Install

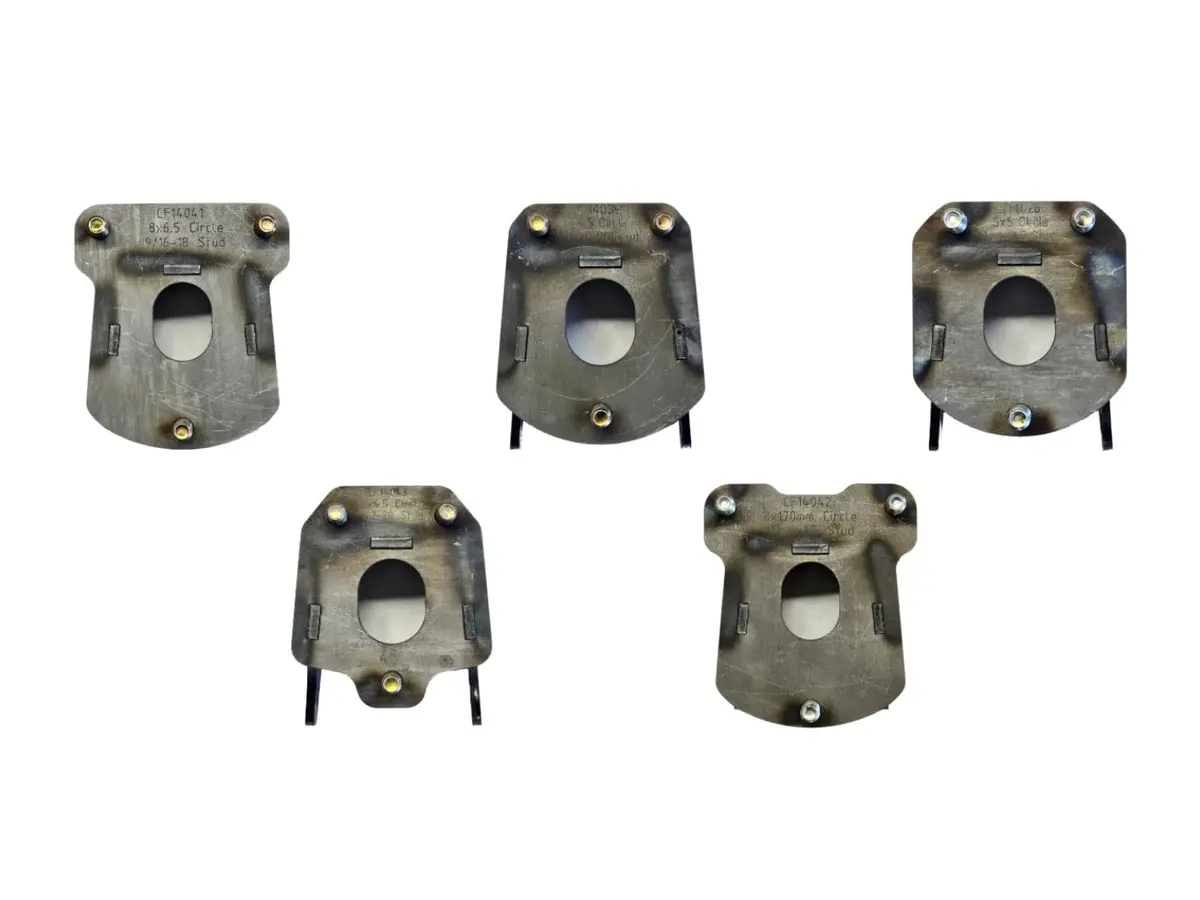

- Accommodates The Following Bolt Patterns
- 5×4.5 with 1/2-20 Stud (TJ Stock OEM Axle)
- 5×5 1/2-20 Stud (JK axle)
- 5×5 14mmx1.5 Stud (JL Axle)
- 5×5.5 1/2-20 STud (Ford primarily)
- 8×6.5, and 8×170 Bolt Patterns (1 Ton Axles)
- No Cutting, No Drilling (Update, 11/6/23, We have found there are some models that have weld-in nuts on the upper hinge, which would need to be removed to utilize the tie-in)
WHATS INCLUDED
- TJ / LJ Elite Series Body Mounted Spare Tire Carrier Kit
- All Mounting Hardware
- Optional License Plate Relocation Bracket Available
NOTES
- If you have a non-stock Cage, this should still fit if it is in the same placement. If the cage is any further forward or back, the tie-in will not work. Closer to the gate will still fit with modification, but further from the gate will not fit.
- Past 37″ we would definitely recommend having a corner armor for safety. Ours can be purchased at these links:
- TJ Rear Corner Armor
- LJ Rear Corner Armor
