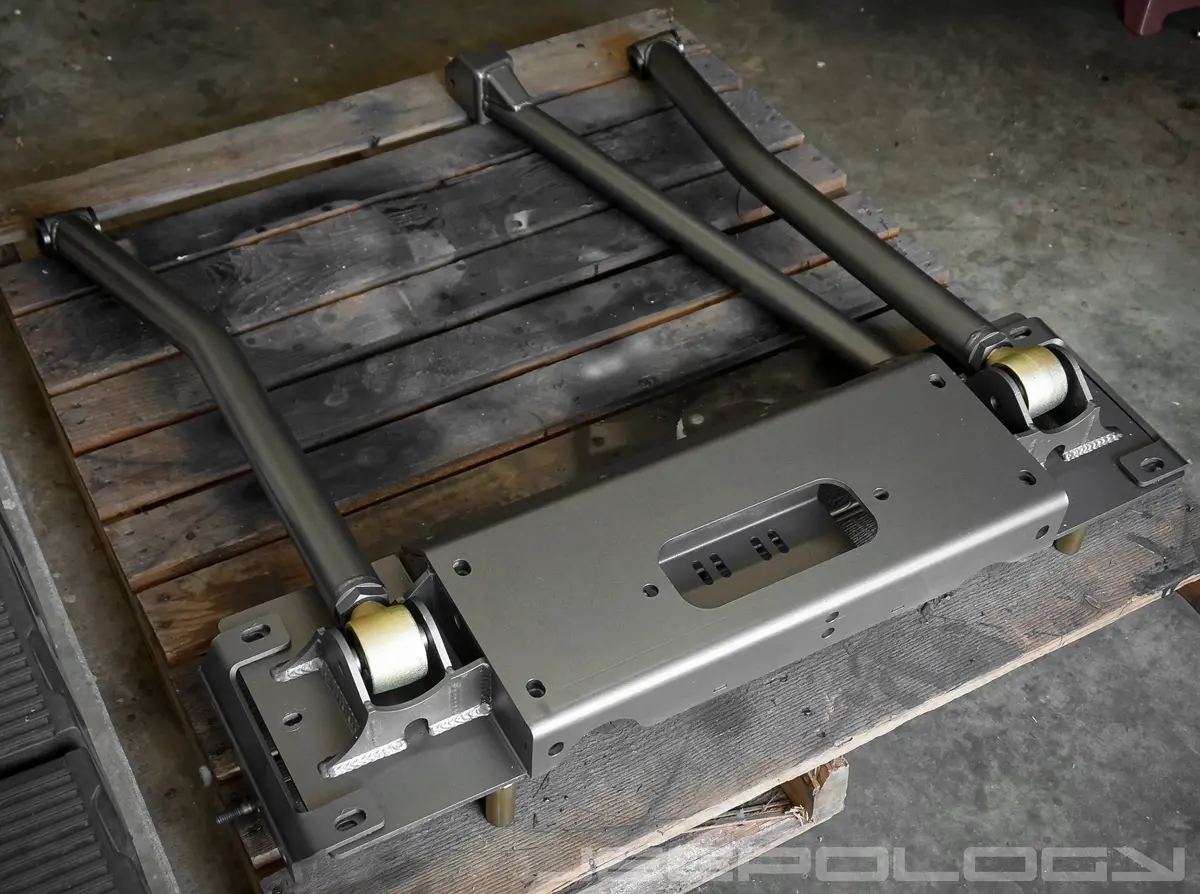

Alpha Series 3-Link Long-Arm Suspension Kit for Jeep XJ/MJ

Description

PRODUCT DESCRIPTION

The CavFab Alpha Series 3 Link Long Arm Kit is the ultimate suspension upgrade for Jeep XJ and MJ models. Engineered for unmatched performance, this kit offers superior suspension geometry for exceptional off-road capability and smooth on-road handling.

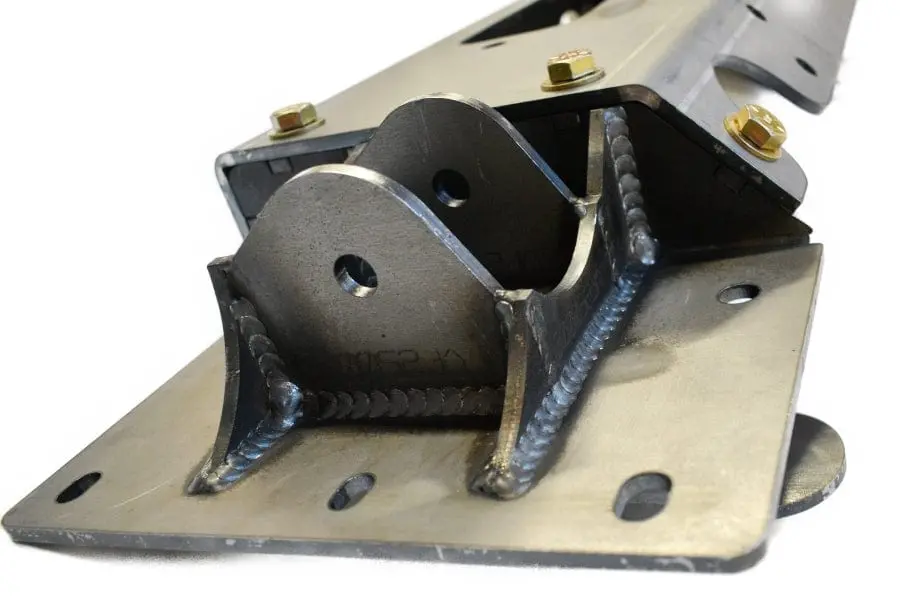

The crossmember is built from .25″ T1 DOMEX plate, CNC-cut and press-formed for maximum strength. Featuring Currie Johnny Joints, known for their durability, rebuildability, and greaseable design, the kit ensures unparalleled suspension travel and longevity. Lower links are made from 2″ x .25″ DOM tubing with high-clearance bends for ground and tire clearance, while the upper arm features 1.75″ x .120″ DOM tubing with a precision CNC-cut cup mount for the axle. A machined Currie Johnny Joint replaces the factory driver-side bushing, upgrading the 10mm bolt to a Grade 8 1/2″ bolt for added strength.

Proven in Ultra4 Racing under car #4696, this race-tested kit excels on daily drivers, trail rigs, and competition vehicles alike. Built for durability, performance, and ease of installation, the Alpha Series 3 Link is the superior long arm upgrade for your Jeep XJ or MJ.

VEHICLE FITMENT

• 1984 – 2001 Jeep Cherokee XJ
• 1986 – 1992 Jeep Comanche MJ

FEATURES

• All 1/4″ American Steel Main Structure High Clearance CrossMember
• Laser Cut/Press Bent CrossMember
• Drop Out (Removable) Center Section Crossmember/Skid
• (8) 1/2″ Bolts to Remove Drop Out Center
• High Clearance Lower Links
• Currie Johnny Joints
• Includes a machined Currie Johnny Joint (accepts larger 1/2″ bolt) to replace driver side upper axle bushing
• 2″ OD .25″ DOM Wall Lower Links
• 1.75″ OD .120″ DOM Wall Upper Link
• Unibody Tie-Ins Included (No stock mounted x-members)
• Included Grade 8 Hardware
• 100% Bolt On Installation
• Works With or Without Frame Stiffeners
• Compatible with lift heights from 3″ – 10″

• The 4th link comes with 1 joint that is the same and 1 joint that is different.

  The 3rd link gets a CE-9114 and a CE-9112M2 joint.

  The 4th link gets a CE-9114 and a CE-9112-12 joint.

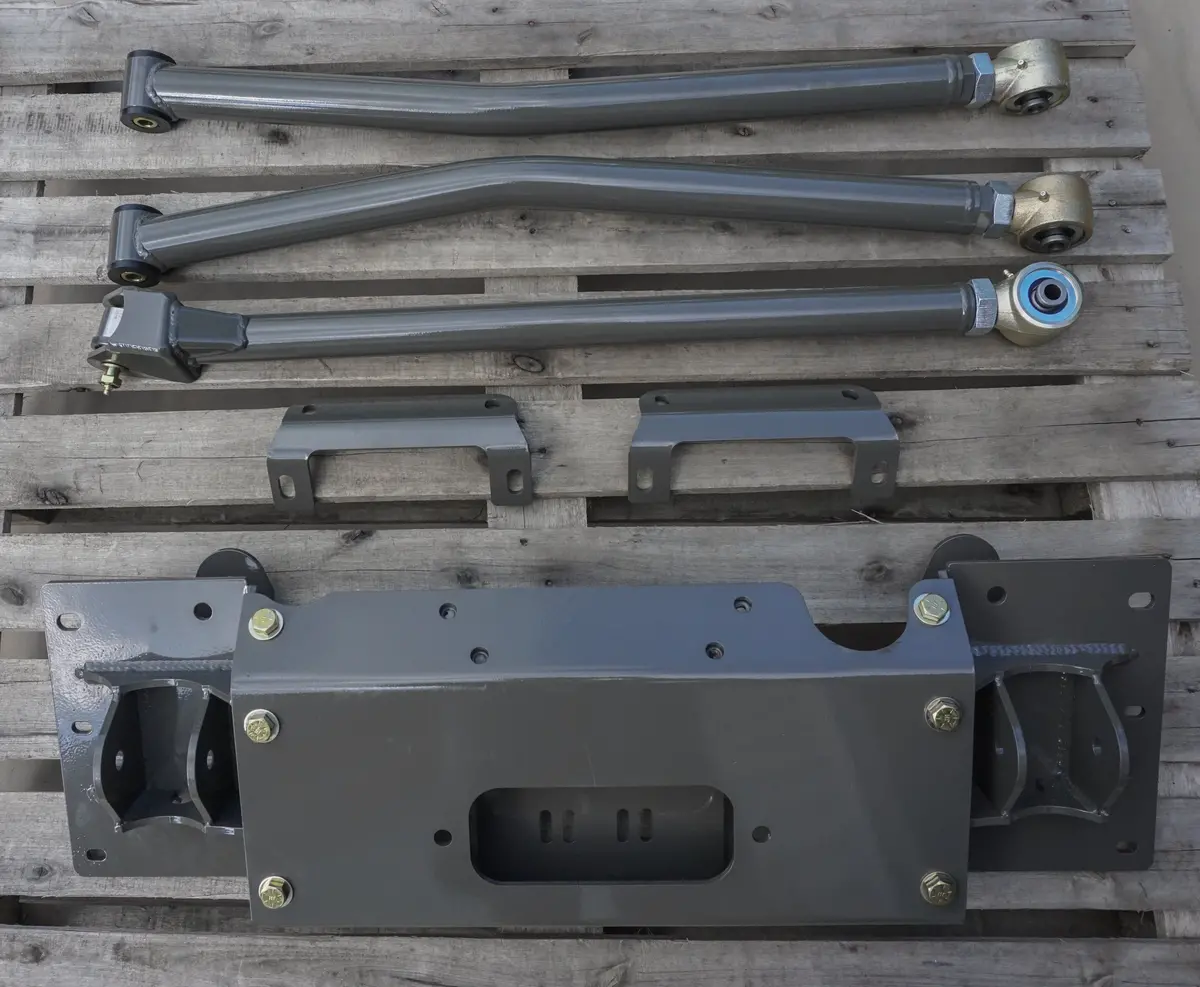

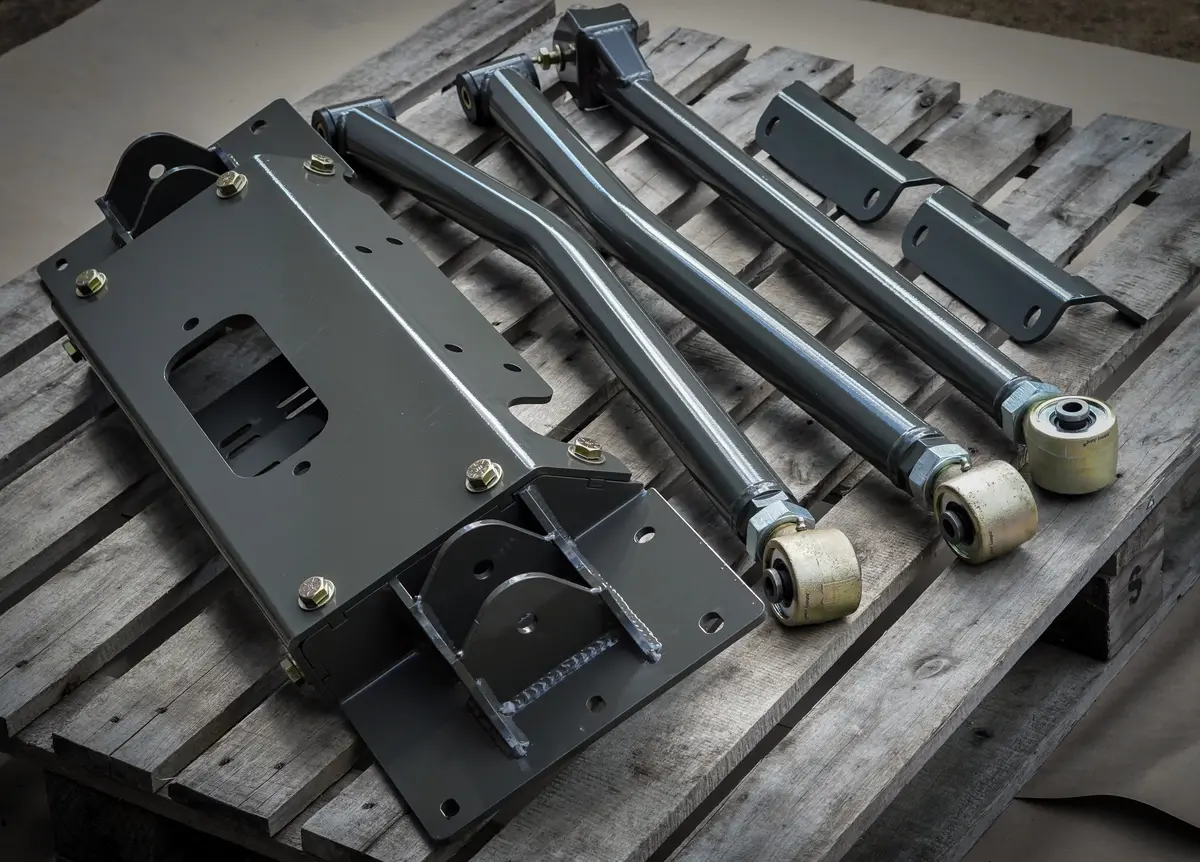

WHATS INCLUDED

• (1) Alpha Crossmember center section
• (2) Tie-Ins
• (2) Side Mounts (Driver and Passenger)
• (2) Lower Links
• (1) Upper Link
• All Mounting Hardware
• (3) Currie Johnny Joints
• (3) Jam Nuts
• (1) Machined Currie Johnny Joint
• (4) Poly Bushings and (1) Inner Sleeve
• (4) Crush Sleeves

NOTES

• Raw Steel or Powder Coating options available
• 7075 Aluminum Links are Double Adjustable
• DOM Steel Links are Single Adjustable
