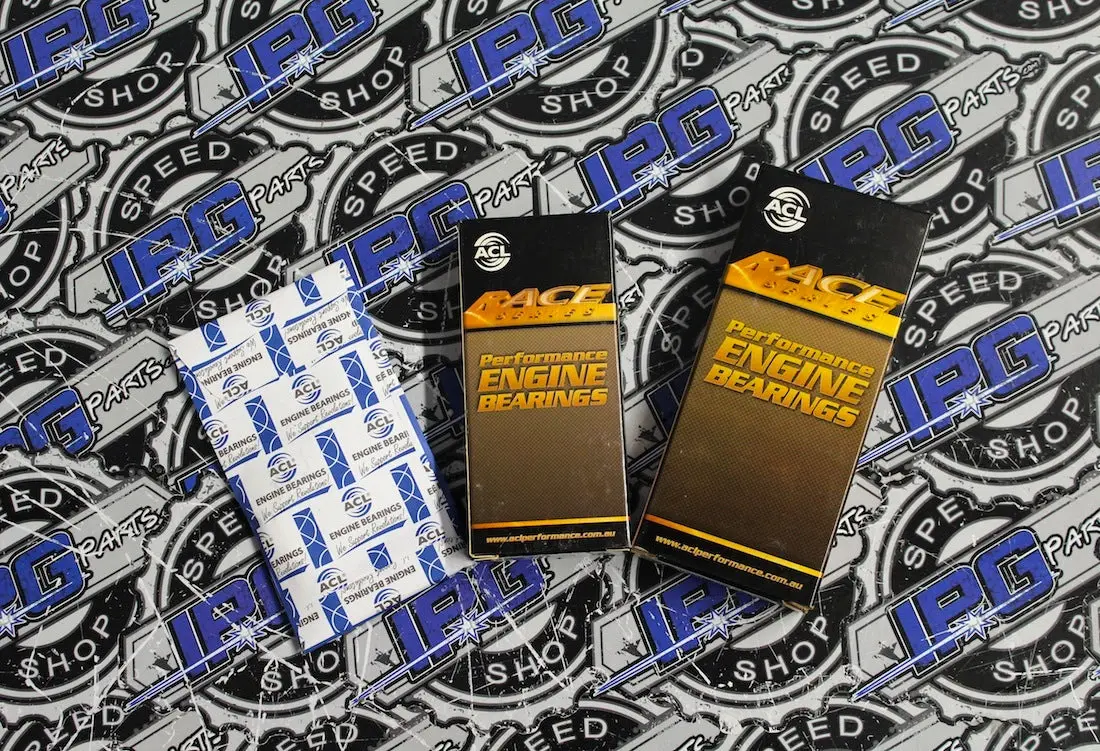

ACL Race Series Main, Rod & Thrust Bearing Set for Honda/Acura B18A, B18B, B20B & B20Z Engines

Description

ACL Race Bearing Set for Acura Integra LS, GS, RS, B18A, B18B, And Honda CRV B20B, B20Z Engines

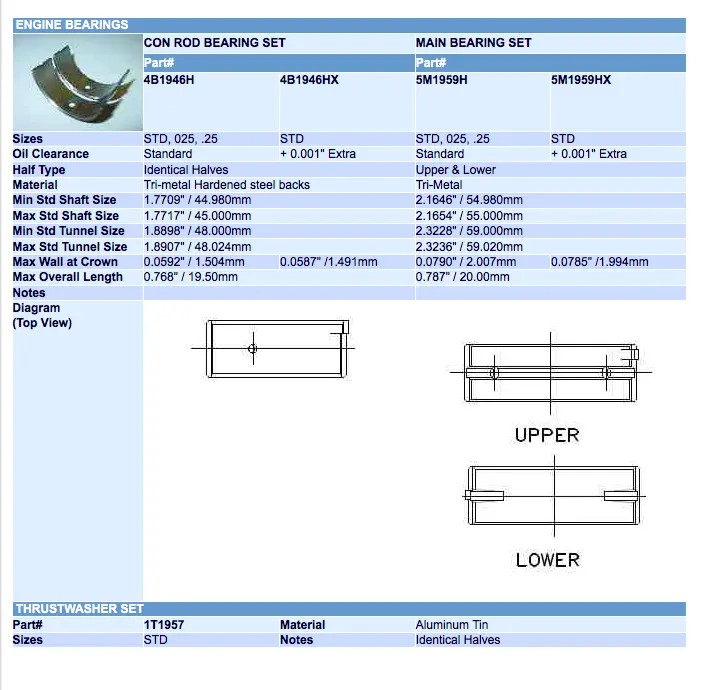

Includes: 1x 4B1946H – Rod Bearings 1x 5M1959H – Main Bearings 1x 1T957 – Thrust Washers

Standard Size

ACL Race Series Performance Engine Bearings The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications. Featuring: – High strength overlay plate with reduced thickness for improved fatigue properties – Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. – Increased crush for improved bearing retention – Elimination of flash plating on the back of the bearings to improve heat transfer through the bearing sand to maximize the grip between the bearings and its housing. – Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films. – 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings. – Tight consistent wall tolerances to help you maintain consistent clearances. – Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts. **Please use the drop down menu below to select bearing size.**
